Technical specifications (same format as euro pallet)

An overview of the technical specifications of the WORLD pallet:

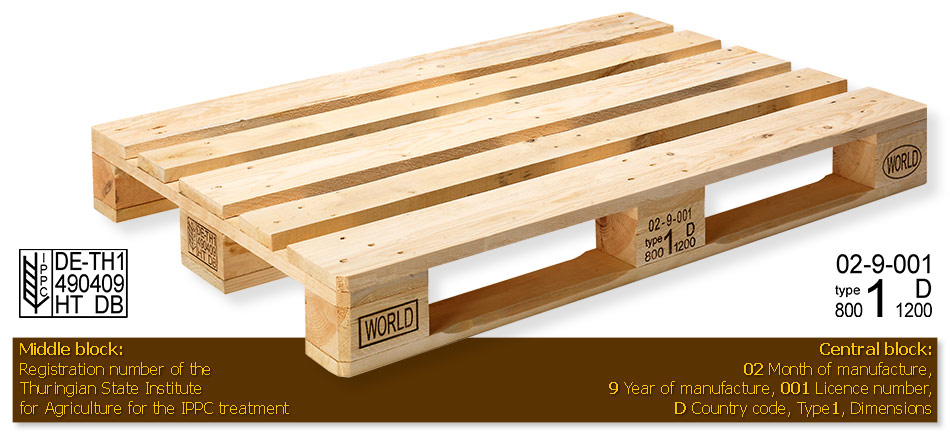

WORLD Pallet

Material:

wood

Dimension (W x L x H):

800 x 1200 x 144 mm
(euro pallet format)

Carrying capacity

In the case of support in racks or shelves or on the fork of an industrial truck or fork lift, the WORLD-Pallet is designed for the following weights:

  • 1.200 kg (nominal load) if the load is arbitrarily distributed on the surface of the pallet
  • 1.700 kg (nominal load) if the load is uniformly distributed on the surface of the pallet
  • 2.200 kg (nominal load) if the load is holohedrally and uniformly distributed in a compact form on the entire surface of the pallet
  • 6.000 kg load range at the lower Pallet, with full-surface stacking

Surface area:

0.96 m²

Block:

optionally solid wood or pressed wood

Parts of the WORLD Pallet:

  • 27 convex ring nails 3.4 / 3.6 x 90 mm
  • 27 convex ring nails 3.4 / 3.6 x 70 mm
  • 24 convex ring nails 2.8 / 3.0 x 40 mm
  • 3 blocks 145 x 145 x 78 mm
  • 6 blocks 145 x 100 x 78 mm
  • 2 cover boards 1200 x 100 x 22 mm
  • 3 cover boards 1200 x 145 x 22 mm
  • 3 cross boards 800 x 145 x 22 mm
  • 1 flooring board 1200 x 145 x 22 mm
  • 2 flooring boards 1200 x 100 x 22 mm
WORLD-Pallet

ISPM 15 Standard:

The pallet can be delivered – depending on the intended use - the pallet can be optionally delivered in ISPM 15 Standard

Data specification:

Further details can be retrieved from the data specification, which can be downloaded here.

WORLD Pallet
 Datasheet [PDF-File | 81kb]

Additional technical information is available by our licensors
